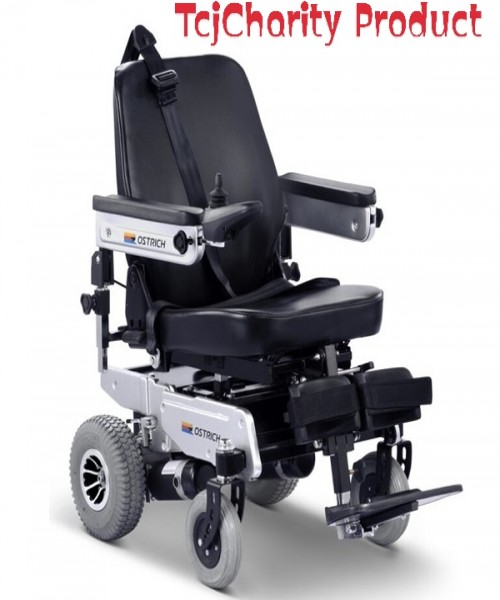

Tetra EX, a beautiful and compact new generation wheelchair powered with revolutionary Split Frame Chassis (SFC) from Ostrich Mobility. This mobility equipment provides excellent manoeuvrability in both indoor and outdoor conditions. The removable seat design helps in portability.
Load capacity: 130 Kg /286lbs
Speed *:7.5km/H maxSpeed
selection: 5 speeds
Features
Split Frame Chassis (SFC)
Urine bag holder
Manual seat height adjustment up to 3 inches
Call alarm
Fault alarmReverse alarm (on request)
Low voltage alarm
Key padlocking
Mobility cut-off whilecharging
Auto shut-off after 3 minutes
Five speed selector
Length adjustable joystick control unit(can be changed from left to right and vice versa)
Foldable, height adjustable and angle adjustable footres
tWide arm rest with height and width adjustment
Bucket seat with three point belt
Seat can befolded for transportation
Seat reclines 30 degrees in 6 steps
Removable and width adjustable calfsupport
Reflectors as per standards
One year replaceable warranty against manufacturing defects
Motor
Power: 320- 340 W
Motor speed: 5300 RPM
Gear ratio: 32:1
Brake: Electromagnetic
Permissible Gradeability: 12 Degrees
Drive Range ** :10-15 km /charge
Tyre & Battery
Tire(Puncture free foam filled rubber tires)
Front– Tire diameter: 190 X50 mm
Rear– Tire Diameter: 260X80mm
Anti tippers– 32 mm/1.2” diameter solid
Battery: 24 V 24Ah Sealed Maintenance Free VRLA
Charger: Input-230/240 V AC Single phase, Output-24 V-5 A DC
Dimensions
Overall length with footrest and tipper wheel (at 90 degrees): 1000mm /39.37”
Overall width: 620mm /24.4”
Overall height: 1300mm/51.18”
Overall height after folding the seat: 760mm /29.92”
Overall weight: 84 Kg/185lbsGround clearance:75mm/3 inchesTurn circle radius:560mm/22.04″
Seat
Seat depth: 480mm /18.89”
Seat width: 470mm /18.5”
Backrest height: 590mm /23.22”
Backrest width: 460mm /18.11”
Seat baseheight from ground: 520mm /20.47”
Manual seat height adjustment up to 75mm /3”
Frame height when seat removed: 350mm/13.77”
Arm Rest
Width: 80mm/3.14”
Length :360mm /14.17”
Height adjustment: 100mm /4”
Width adjustment: yes
Foot Rest
Length: 190mm/7.48”
Width: 340mm /13.38”
Length adjustment: 135mm /5.31”
Angle adjustment: Up to 90 degrees
